ML-80

Brochure

Manual

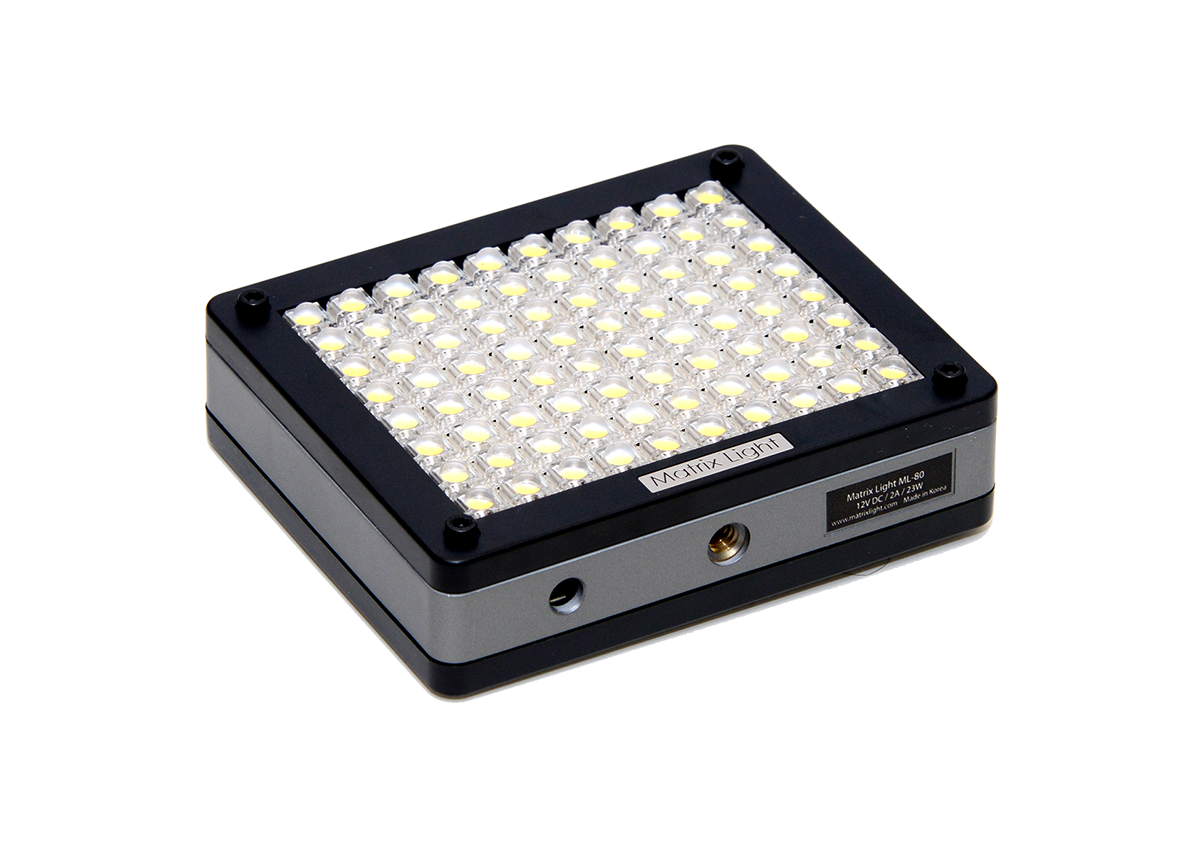

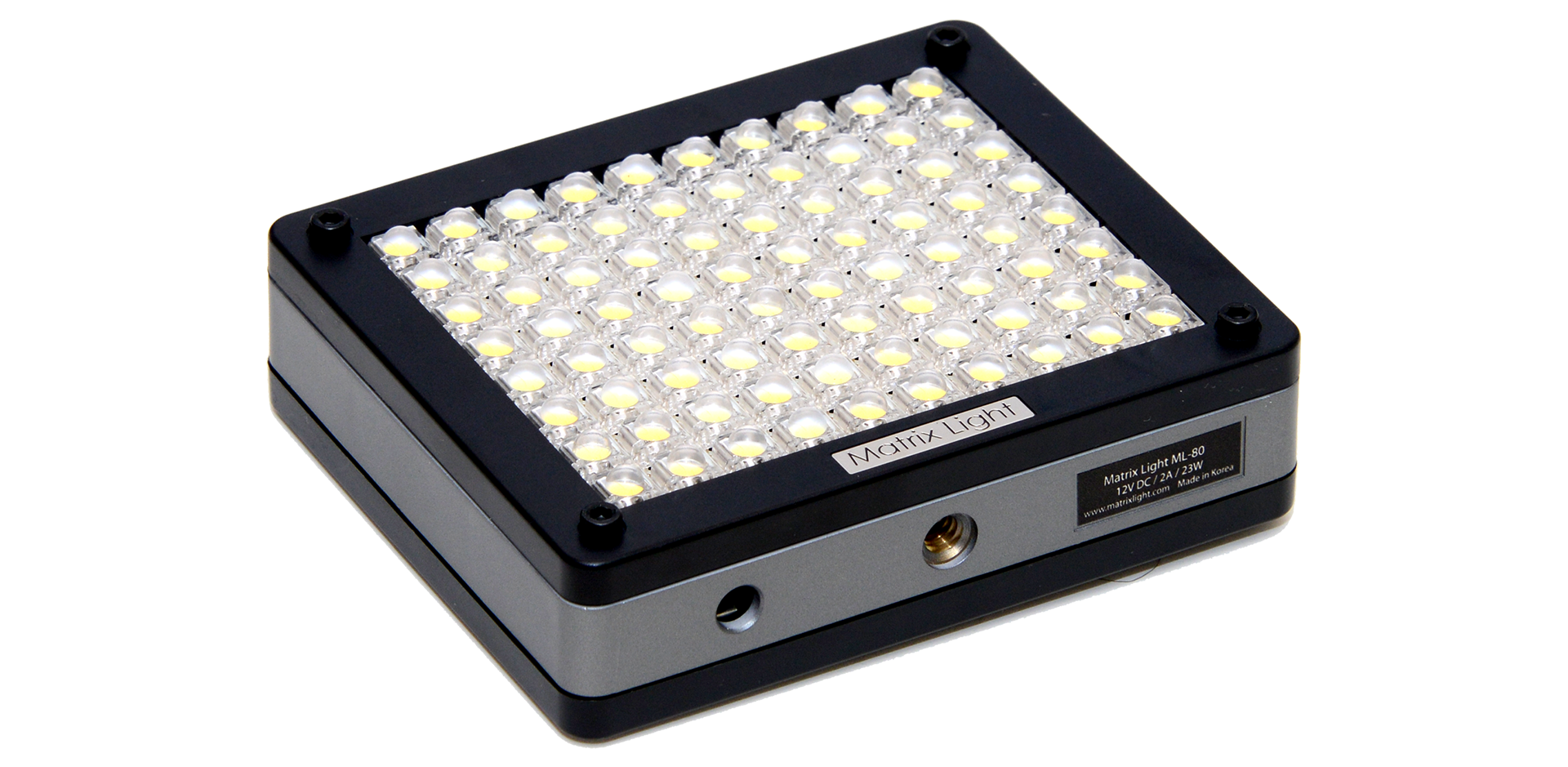

Light and convenient Matrix Light ML-80 LED Light

Matrix Light ML-80 offers the highest efficiency to its price. It has the option of 3,400K/4,500K/5,600K saturation options and 1,250lm maximum brightness as well as lighter weight and simpler brightness control.

Intuitive and Easy Switch

Display Indicators

Matrix Light's ML-80 LED Light has two simple switches that are ON/OFF and Color Temperature Control. It is convenient for users who prefer a simple and intuitive interface.

Matrix Light's ML-80 LED Light is equipped with four indicators to display the current brightness and color temperature in an easier-to-understand manner. The current values, displayed in four, allow the user to set the light amount and color temperature more conveniently and accurately.

2

Switch

4

Indicator

Cost Effective LED Light

The ML-80 LED light is about 20 percent brighter than the light with a 100W halogen lamp. It is two to four times brighter than other lights on the market. These brightness values remain almost uniform throughout the usage time. It also has a wider irradiation angle compared to other lights, which gives it a more advantage.

1,250lm

Maximum Brightness(Unit : Lumen)

3,200K

Minimum Color Temp.(Unit : Kelvin)

5,600K

Maximum Color Temp.(Unit : Kelvin)

ML-9

2,200

ML-7

1,950

ML-80

1,250

100W Light Bulb

1,000

Maximum

Brightness

(Unit : Lumen)

Specifications

- Product : Power LED Light

- Size : Length X Width X Height (105mm X 87mm X 27mm)

- Weight : 185g

- Effective illumination distance : 0.6 ~ 20m(can vary depending on

                                                                shutter speed, and other camera variables)

- Saturation Range : 3,400K, 4,500K, 5,600K

- Brightness : 650lm / 1,250lm

- Power : 12V DC

- Power consumption :1A 11.5W(650lm) / 2A 23W(1,250lm)

- Light efficiency : 66lm/W

- Battery : 12V DC / 4,700mA(Li-ion)

- Battery hours : 5h(650lm) / 2h 30min(1,250lm)

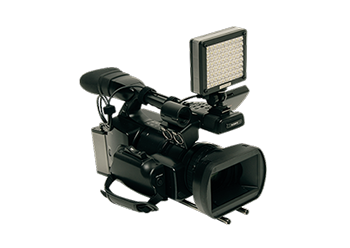

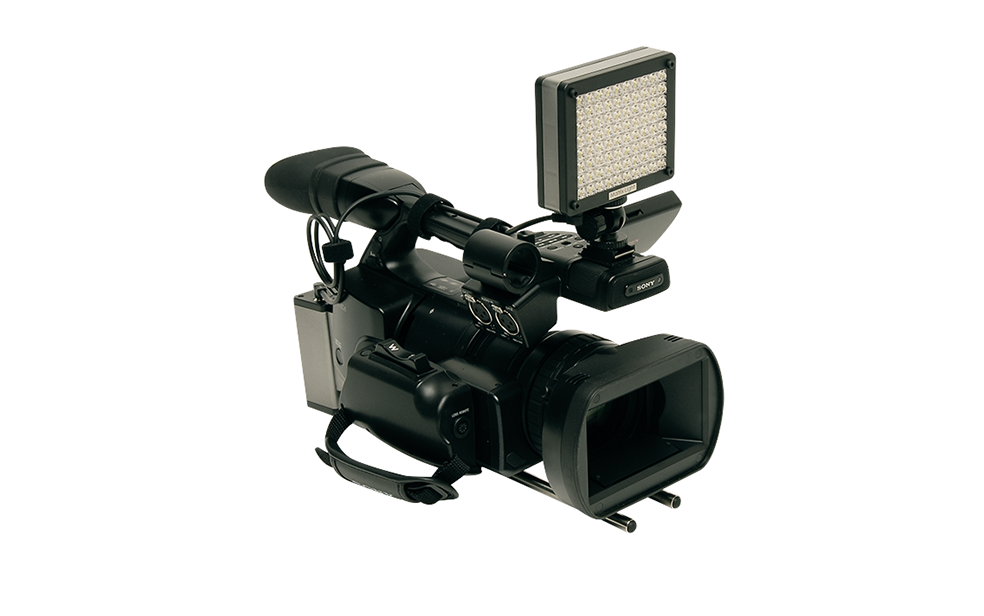

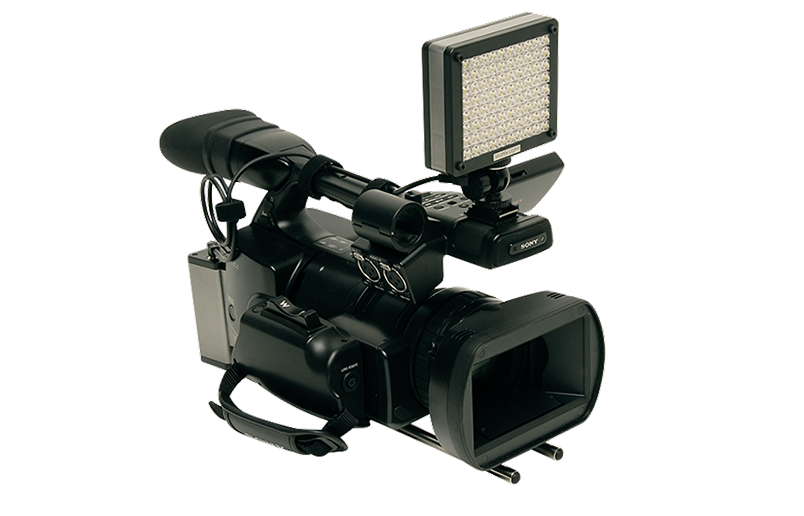

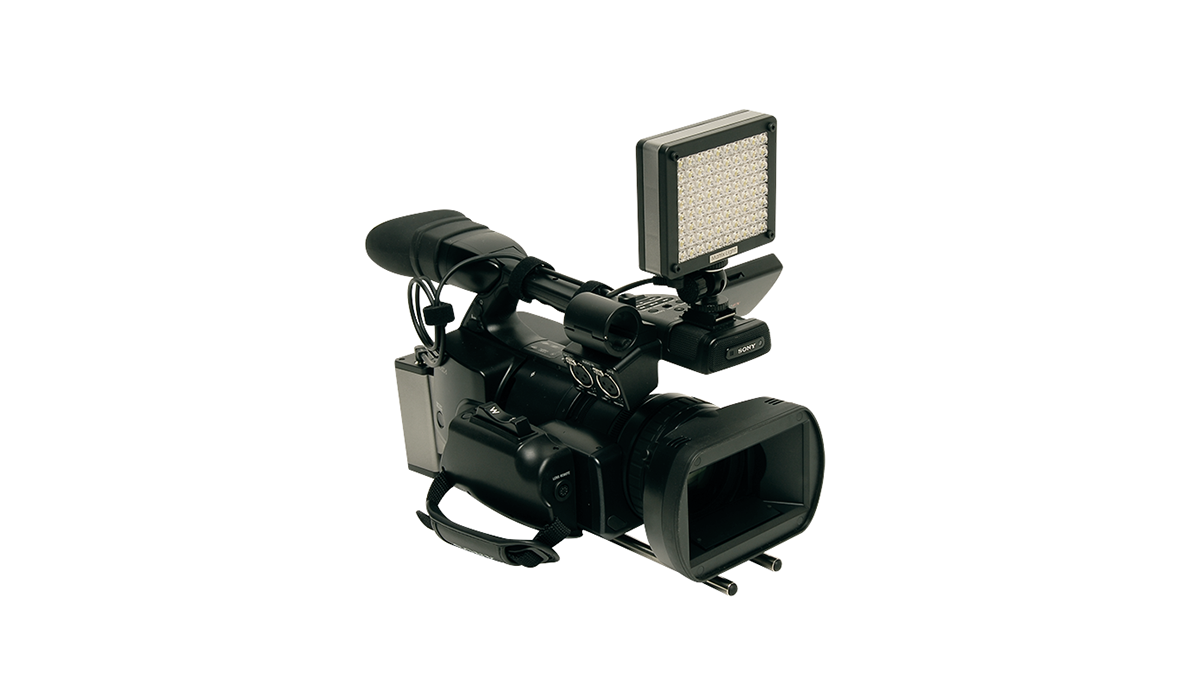

  • ML-80 LED Light ENG Camera KIT

    ML-80

    LED Light Module

    ML-PT2

    D Tap Power Cable

    ML-DF1

    Diffuser

    ML-LB3

    Light Bracket(Ball Head)

    ML-MSC1

    Shoe Converter(Male to Female)

  • ML-80 LED Light Hand Held Camera KIT

    ML-CHG1

    Battery Charger

    ML-SL30/AT1

    L Type Slide/Attachment

    ML-80

    LED Light Module

    ML-DF1

    Diffuser

    ML-PC1

    Power Cable

    ML-LB3

    Light Bracket(Ball Head)

    ML-BA12

    Li-ion Battery
