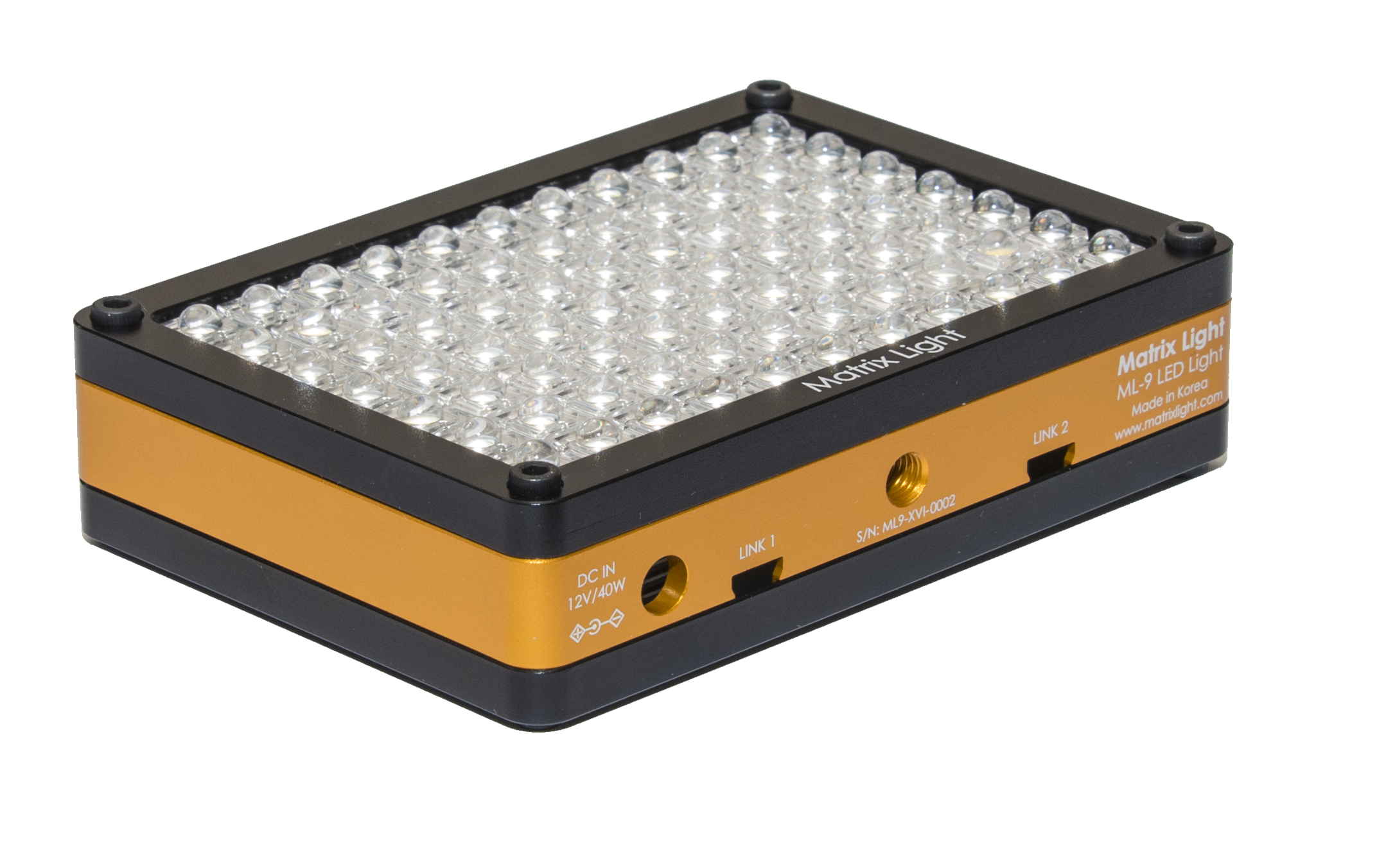

More functional and brighter than ever before

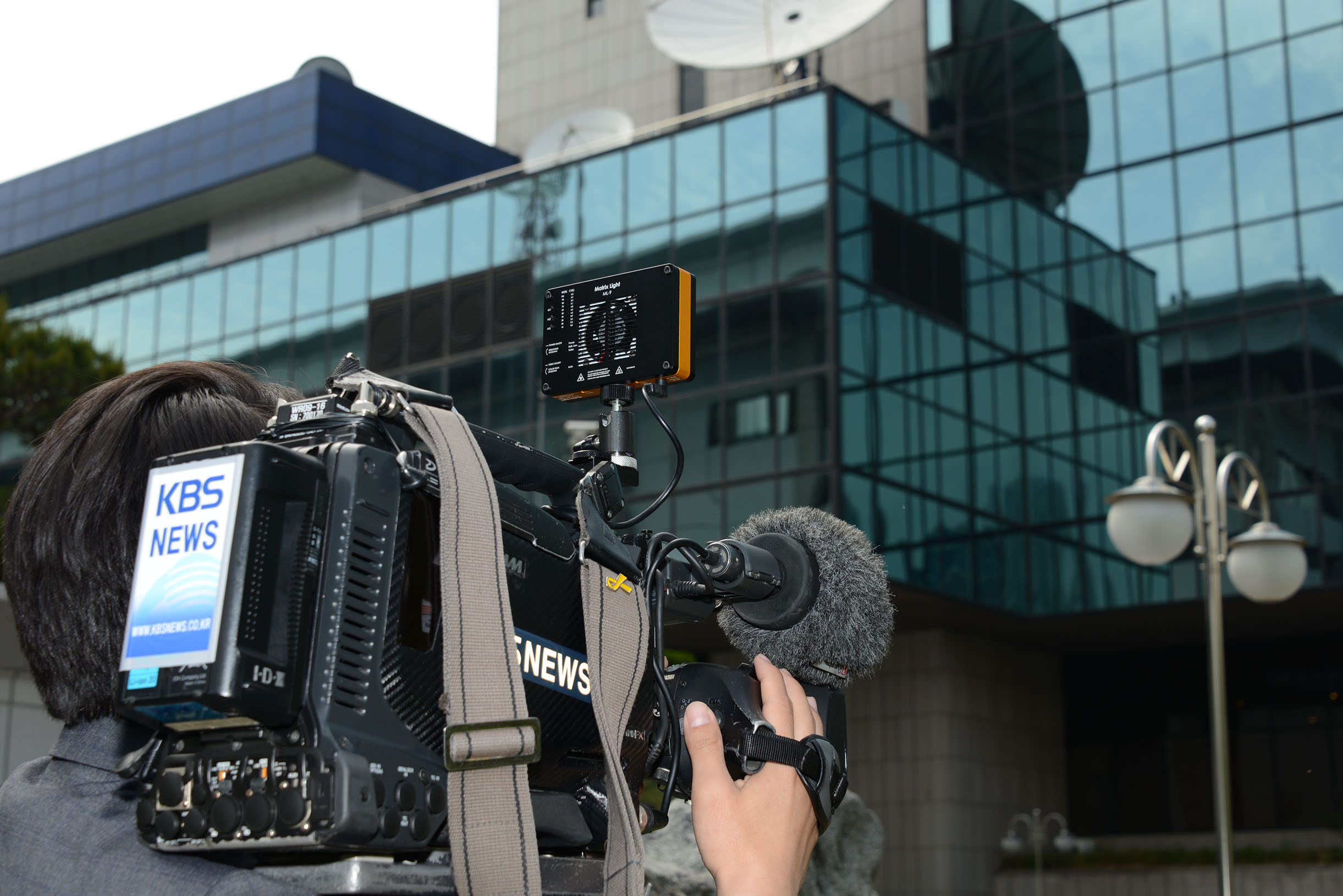

Matrix Light has been providing broadcasting stations and professional broadcasters with the best quality products since the release of the ML-80 LED light. Long term customers such as KBS, MBC, SBS and NHK, and Fuji TV have demonstrated the reliability and superiority of the Matrix Light products. Accepting various inputs from professional broadcasters, the new Matrix Light ML-9 will be the ultimate light in the field.

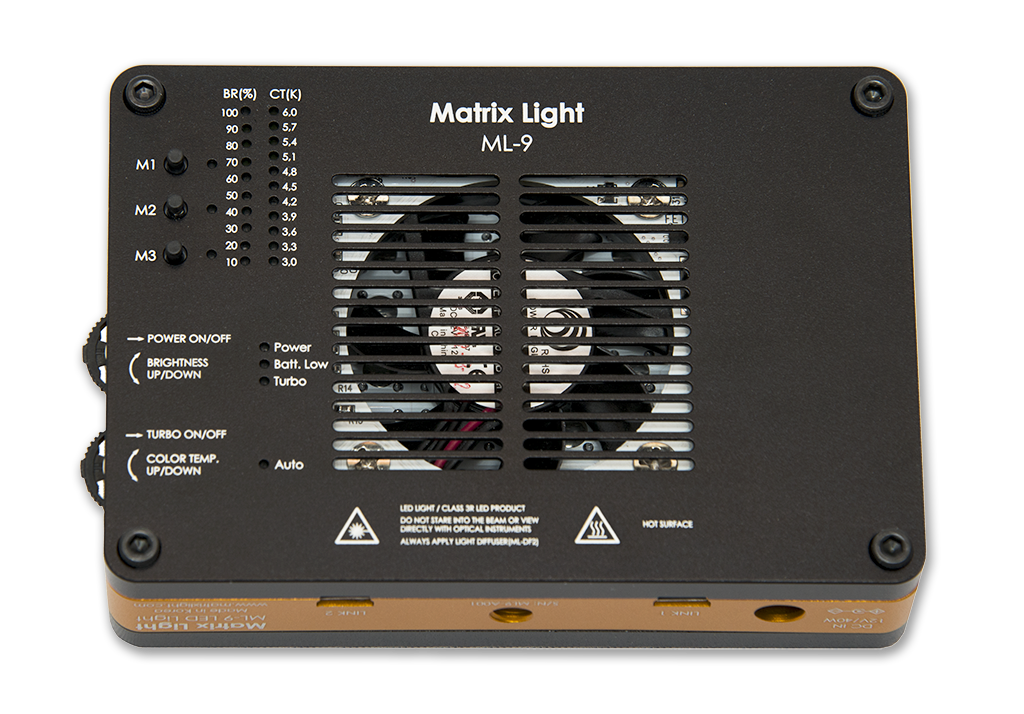

Memory Buttons

Brightness Indicator

Color Temp. Indicator

Memory Buttons

Dual Indicators

ML-9 LED Light includes three built-in memory buttons that could restore most frequently used brightness and color temperature. This convenient feature allows the user to get the light ready efficiently.

ML-9 LED Light includes dual indicators that could display current brightness and color temperature. This convenient feature allows the user to get more detailed light control.

3

Memory

Buttons

2

Indicator

Precision light control system

Precision dimming and coloring controllers on the ML-9 allows the user to achieve the ideal brightness and color temperature for every occasion.

▣ Brightness range: 150lm to 2,200lm in 240lm increments

▣ Color temperature range: 3,200K to 5,800K in 240K increments

The Turbo mode supports up to 2,200lm of brightness, equivalent to a 220W light bulb, for situations requiring more bright lighting.

2,200lm

Maximum Brightness(Unit : Lumen)

3,200K

Minimum Color Temp.(Unit : Kelvin)

5,800K

Maximum Color Temp.(Unit : Kelvin)

ML-9

2,200

ML-7

1,950

ML-80

1,250

100W 백열전구

1,000

Maximum

Brightness

(Unit : Lumen)

Specifications

▪ Type :  Current regulated power LED light



▪ Light projection range :  0.6 ~ 6M (Effective light projection range)

            (depends on shutter speed, aperture levels, and gain control)



▪ Light projection angle Horizontal :  110 ˚ vertical: 90 ˚



▪ Color Temperature :  3200K~5800K (240K/1Step)



▪ Brightness :  10% ~ 100% (230lm/1Step)



▪ Luminance Flux :  1,100lm MAX (in Normal Mode)

                                     2,200lm MAX (in Turbo Mode)



▪ Illuminance in 1M distance :  1,100lux MAX (in Normal Mode)

                                                           2,200lux MAX (in Turbo Mode)



▪ Power supply :  12V DC



▪ Current consumption :  Normal mode: 1.5A/18W(Max)

                                                Turbo mode :  3A/36W(Max)



▪ Luminance efficiency :  66lm/W



▪ Battery :  12V DC / 5,200mA (Li‐ion)



▪ Battery running time : 2h 30min (Maximum Brightness in Normal Mode)

                                              1h 15min (Maximum Brightness in Turbo Mode)

  • ML-9 LED Light DSLR Camera KIT

    ML-9

    LED Light Module

    ML-DF2

    Diffuser

    ML-PC1

    Power Cable

    ML-LB3

    Light Bracket(Ball Head)

    ML-CHG1

    Battery Charger

    ML-BA12

    Li-ion Battery

    ML-SL10/AT1

    C Type Slide/Attachment

  • ML-9 LED Light Hand Held Camera KIT

    ML-CHG1

    Battery Charger

    ML-9

    LED Light Module

    ML-DF2

    Diffuser

    ML-PC1

    Power Cable

    ML-LB3

    Light Bracket(Ball Head)

    ML-BA12

    Li-ion Battery

    ML-SL30/AT1

    L Type Slide/Attachment

  • ML-9 LED Light ENG Camera KIT

    ML-9

    LED Light Module

    ML-PT2

    D Tap Power Cable

    ML-DF2

    Diffuser

    ML-LB3

    Light Bracket(Ball Head)

    ML-MSC1

    Shoe Converter(Male to Female)
