ML-AL 1, 2, 4

Brochure

Manual

Powerful enough to be called Ultimate Light Source

ALL LIGHT, Ultimate Light Source

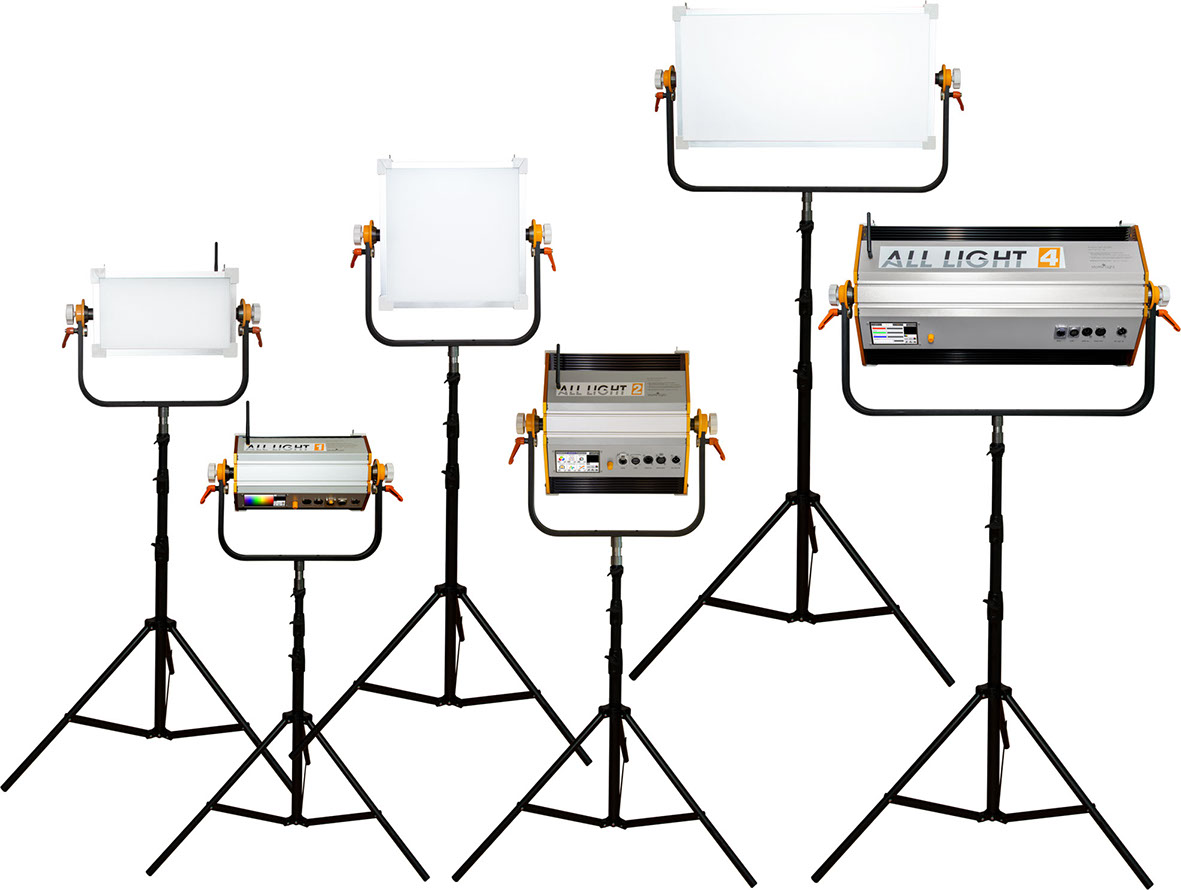

Matrix Light ALL LIGHT 1, 2, and 4 are designed and built with the goal of creating the ultimate lighting that professionals have wanted. The product reflects the diverse needs of the field and creates a fast and seamless user experience that enables professional users to deploy light sources as closely as possible to the real world. Professional users can easily meet their needs by using the ALL LIGHT Series when they need multi-functional, high-performance lighting to suit their situations, such as broadcasting, movies, commercials, and live events.

Innovative Graphic Touch Interface

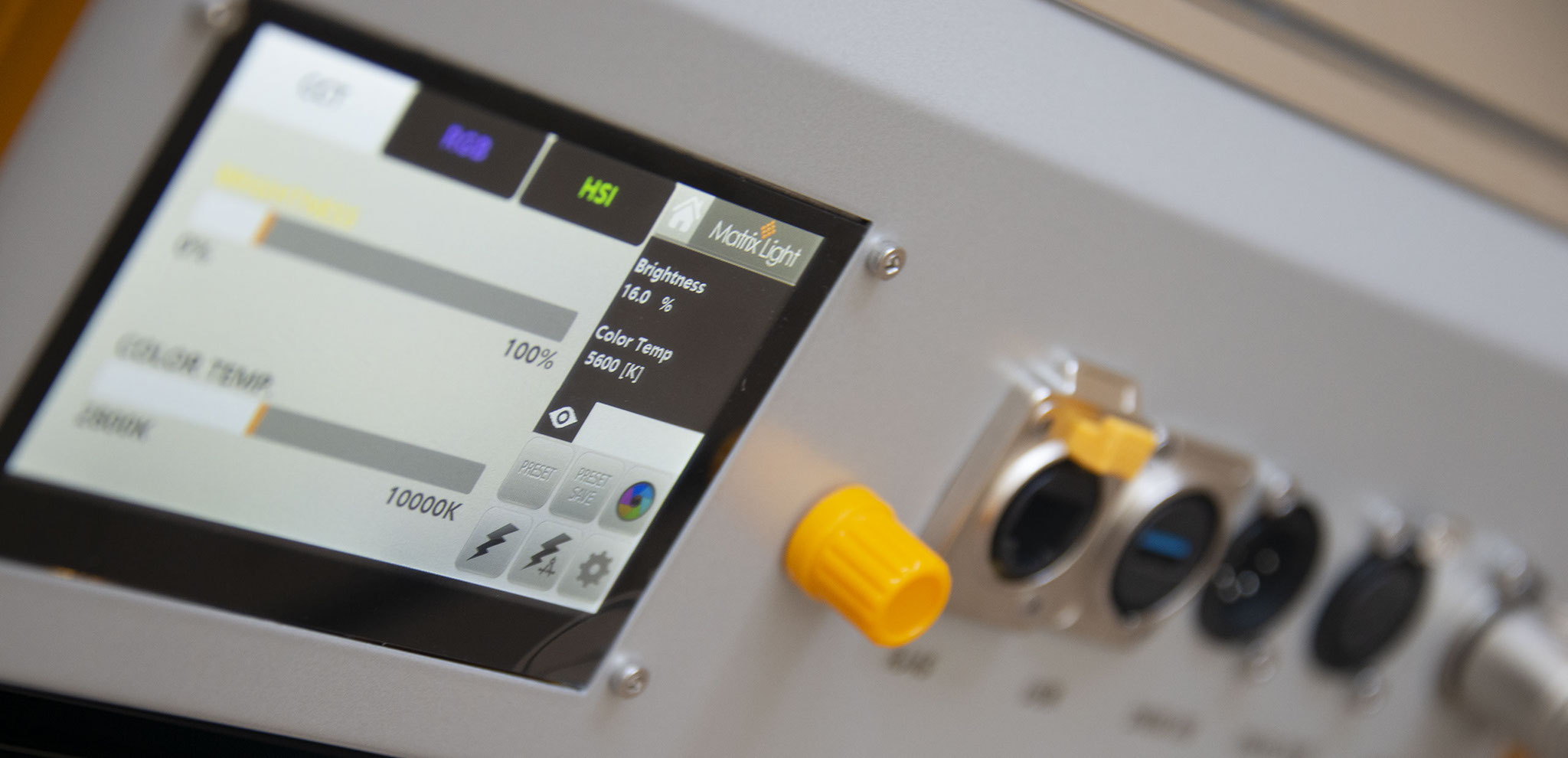

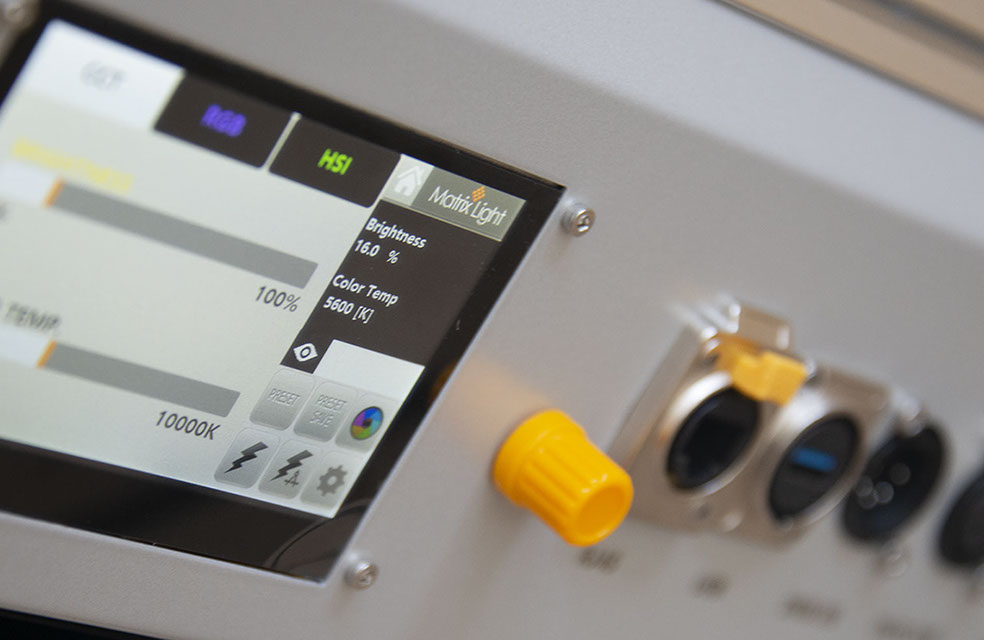

The Matrix Light ALL LIGHT Series features an innovative Graphic Touch control interface, which provides users with quick and easy access to a variety of menus, making it incredibly easy and convenient to control compared to the complex and cumbersome operating methods adopted by similar products.



Wire /Wireless Control Interface

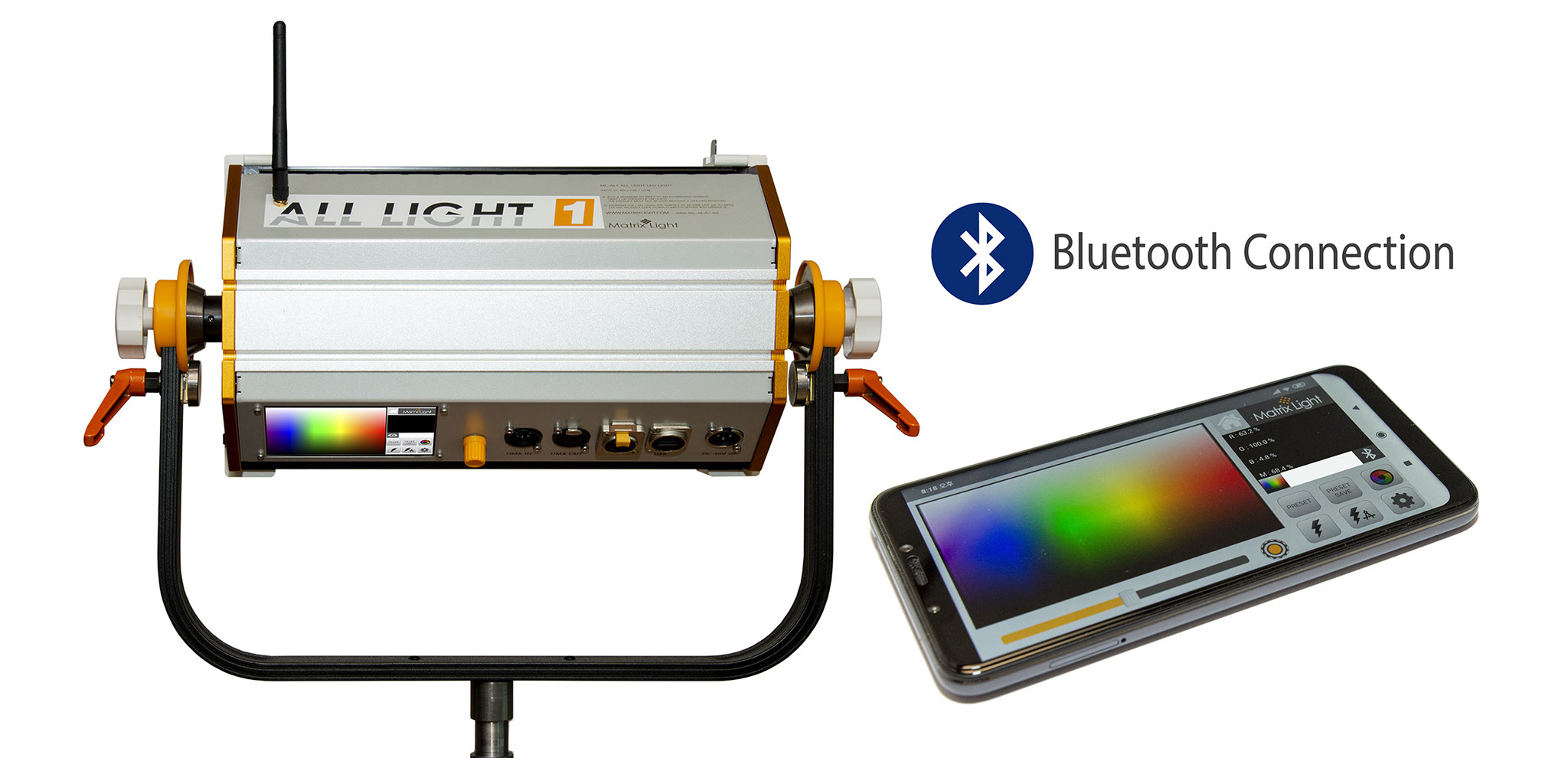

The Matrix Light ALL LIGHT Series complies with the DMX-512 standard protocol to make it fully compatible with traditional lighting controllers. The ALL LIGHT Series can also be controlled with smartphones and tablets via Bluetooth connection.

Preset / Preset Save

The Matrix Light ALL LIGHT Series has a preset menu that recreates the colors of many different light sources. In addition, the colors and brightness of the various light sources you set are saved through the Preset Save menu, and the saved settings can be recalled and used at any time. These features make it very convenient to match the settings of the same lighting when shooting multiple scenes in succession on the scene.

Multi Effect and Color Filter

The ALL LIGHT provides users a wide range of preset lighting effects. Users can also easily create their custom lighting effects by using the ALL LIGHT effect creator. The ALL LIGHT includes hundreds of color filters, which can be accessed by their code value or name. The color filters not only simplify the color lighting process, but also enable precise and flexible color control.

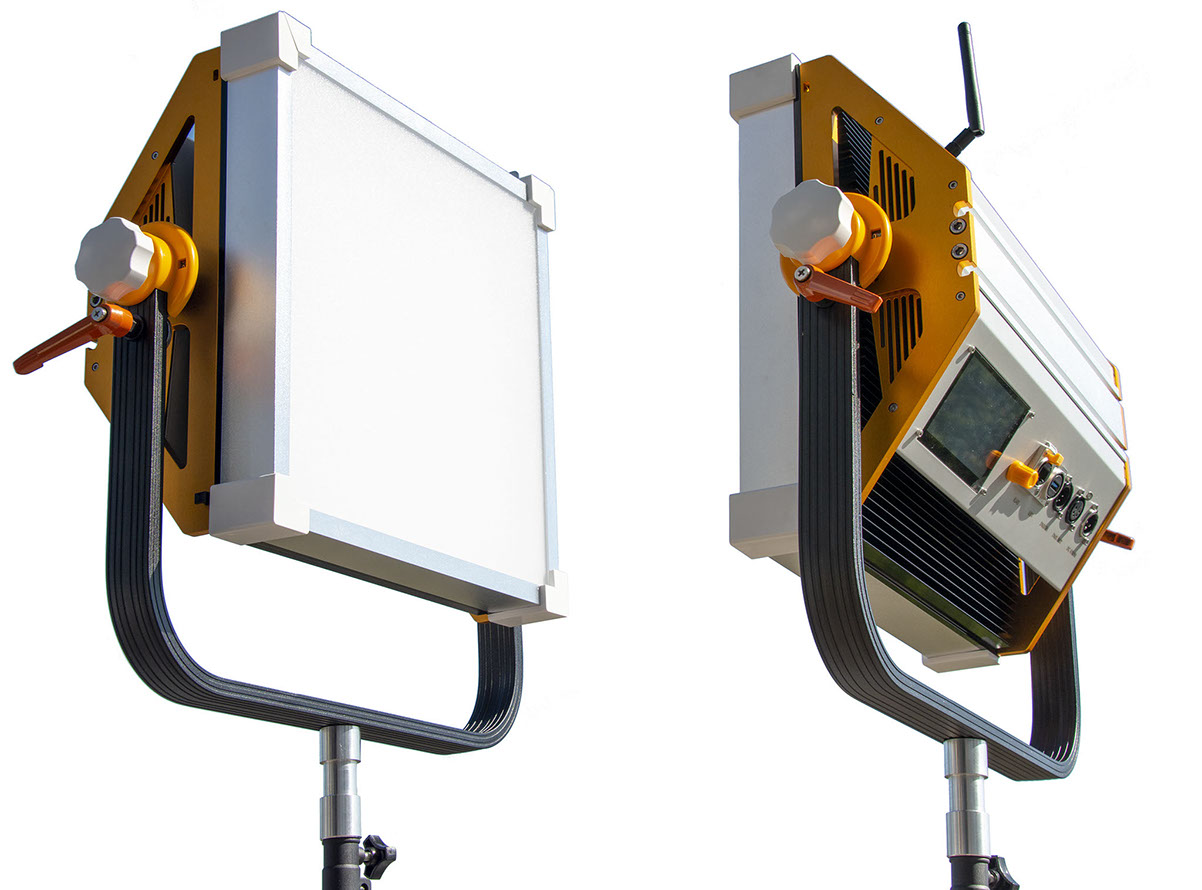

Solid body, Better performance

The ALL LIGHT's main body includes a high-efficiency aluminum heat sink and a cooling fan. This feature help minimize the effect of temperature difference on the ALL LIGHT's performance. In addition, the mechanical strength and lifespan of the product's key parts and accessories have been significantly improved. ALL LIGHT will be the most ultimate form of LED light, providing the highest quality of light as intended by the photographer.

The Matrix Lights All Light 1, 2 4 series is the most advanced LED Light. Convenient and intuitive interface, various effects, hundreds of color filters, wired/wireless control systems, those are enough conditions for the All Light 1, 2, 4 series to be the ultimate light source.

Photometric Data



                                                                    3 m / 9.8 ft                    5 m / 16.4 ft                    7 m / 23 ft                      9 m / 29.5 ft



  ALL LIGHT 1                                   3,200K      5,600K          3,200K      5,600K         3,200K      5,600K        3,200K      5,600K



       414 lx        406 lx           149 lx       146 lx               76 lx          74 lx             46 lx          45 lx



       448 lx        437 lx           161 lx       157 lx               82 lx          80 lx             50 lx          49 lx



       343 lx        333 lx           124 lx       120 lx               63 lx          61 lx             38 lx          37 lx



         38 fc          38 fc             14 fc         14 fc                 7 fc            7 fc               4 fc            4 fc



         42 fc          41 fc             15 fc         15 fc                 7 fc            7 fc               5 fc            5 fc



         32 fc           31fc              11fc         11 fc                 6 fc            5 fc               3 fc            3 fc



  ALL LIGHT 1 with

  Standard Diffusion



  ALL LIGHT 1 with

  Lite Diffusion



  ALL LIGHT 1 with

  Heavy Diffusion



                                                                    3 m / 9.8 ft                    5 m / 16.4 ft                    7 m / 23 ft                      9 m / 29.5 ft



  ALL LIGHT 2                                   3,200K      5,600K          3,200K      5,600K         3,200K      5,600K         3,200K      5,600K



       829 lx        811 lx           298 lx       292 lx             153 lx       149 lx              92 lx          90 lx



       895 lx        873 lx           323 lx       315 lx             165 lx       161 lx           100 lx          97 lx



       686 lx        667 lx           247 lx       240 lx             126 lx       123 lx              76 lx          74 lx



         77 fc          76 fc             28 fc         27 fc               14 fc         14 fc                8 fc            8 fc



         84 fc          81 fc             30 fc         30 fc               15 fc         15 fc                9 fc            9 fc



         63 fc          62 fc             23 fc         23 fc                12 fc        11 fc                7 fc            7 fc



  ALL LIGHT 2 with

  Standard Diffusion



  ALL LIGHT 2 with

  Lite Diffusion



  ALL LIGHT 2 with

  Heavy Diffusion



                                                                    3 m / 9.8 ft                    5 m / 16.4 ft                    7 m / 23 ft                      9 m / 29.5 ft



  ALL LIGHT 4                                   3,200K      5,600K          3,200K      5,600K           3,200K      5,600K        3,200K      5,600K



    1,658 lx     1,623 lx           597 lx       583 lx             305 lx       297 lx           184 lx        181 lx



    1,790 lx     1,747 lx           645 lx       629 lx             329 lx       321 lx           200 lx        194 lx



    1,372 lx     1,334 lx           494 lx       481 lx             251 lx       246 lx           151 lx        149 lx



       154 fc        151 fc             57 fc         54 fc               27 fc         27 fc             16 fc          16 fc



       167 fc        162 fc             59 fc         59 fc               30 fc         30 fc             19 fc          19 fc



       127 fc        124 fc              46fc         46 fc               24 fc         22 fc             14 fc          14 fc



  ALL LIGHT 4 with

  Standard Diffusion



  ALL LIGHT 4 with

  Lite Diffusion



  ALL LIGHT 4 with

  Heavy Diffusion

Technical Specifications



  Lamp Head



  Soft Diffusion Pannel



  Optical System



  ML-AL1: 310 x 166 mm / 12.2 x 6.5"    (ALL LIGHT 1)

  ML-AL2: 310 x 310 mm / 12.2 x 12.2"  (ALL LIGHT 2)

  ML-AL4: 610 x 310 mm / 24.4 x 12.2"  (ALL LIGHT 4)



  Light Aperture



  115° (Half Peak Angle)



  Beam Angle



  ML-AL1:   6.5kg / 14.3lbs   (ALL LIGHT 1)

  ML-AL2:   8.9kg / 19.6lbs   (ALL LIGHT 2)

  ML-AL4: 16.0kg / 35.3lbs   (ALL LIGHT 4)



  Weight



  Aluminum Yoke, High Strength Tilt Lock, Pole Operation Option  (Pan & Tilt)



  Handling



  115° (Half Peak Angle)



  Beam Angle



  +/- 90°



  Tilt Angle



  48V DC



  Lamphead Voltage Input



  48V DC /   2.6A / 110W Nominal, 120W Maximum   (ALL LIGHT 1)

  48V DC /   5.2A / 220W Nominal, 290W Maximum   (ALL LIGHT 2)

  48V DC / 10.4A / 450W Nominal, 580W Maximum   (ALL LIGHT 4)



  Power Consumption



  Male 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)



  Lamphead Power Connection



  Female 3-Pin XLR - 15 Amp (Pin 1: Negative / Pin 2: Positive)



  Battery Connector



  48V DC



  Battery DC Voltage Range



  100 % of total output



  Battery Mode Light Output



  2,800 K to 10,000 K continuously variable correlated color temperature



  White Light



  Full RBG+WW+PW color gamut with Hue and Saturation control



  Colored Light



  +/- 100 K (nominal), +/- 1/8 Green-Magenta (nominal)



  Color Temperature Tolerance



  CRI  Average > 95 TLCI Average > 91



  Color Rendition



  Continuously adjustable (Full Minusgreen to Full Plusgreen)



  Green-Magenta Adjustment



  0 to 100 % continuous



  Dimming



  On-Board Controller, 5-Pin DMX In and Through,   RJ45 LAN network

  connectivity, USB-A



  Control



  DMX Setup and Standard Control commands



  Bluetooth Connectivity



  USB-A: Software Upgrade via flash drive



  Software Interface



  Orange / Silver, Black, White



  Housing Color



  -20 to +45º C (-4 to +113º F)



  Ambient Temperature Operation



  III / IP20



  Protection Class / IP Rating



  50,000 hours



  Estimated LED Lifetime (L70)



  +/- 5 %



  Estimated Color Shift Over

  Lifetime (CCT)



  Power Supply Unit



  110 to 240 V ~, 50/60 Hz



  Power Supply Input Range



  48 V DC



  Power Supply Output Range



  PowerCON TRUE1 (Bare Ends / Schuko / Edison cables available)



  Power Input Connection



  Female 3-Pin XLR - 10 Amp (Pin 1: Negative / Pin 2: Positive)

  PowerCON TRUE1 (mains power through)



  Power Output Connection



  ML-APS1: 2.5Kg/5.5lbs  ML-APS2: 2.9Kg/6.4lbs  ML-APS4: 4.9Kg/10.8lbs



  Weight



  348 x 124 x 70 mm / 13.7 x 5.4 x 2.8“ (ML-APS1,2)

  390 x 176 x 76 mm / 15.3 x 6.9 x 3.0“ (ML-APS4)



  Dimensions



  On-Board On/Off Switch



  Control



  All Light ML-AT2 Quick Release Clamp Adapter / ML-QR1 Rail Mount Adapter



  Mounting

  • ML-AL1  ALL LIGHT 1

    ML-AL1

    LED Light Module

    ML-APC1

    PowerCon AC Power Cable

    ML-APC2

    DC Power Cable

    Optional Part

    Optional Part

    Optional Part

    ML-APS1

    48V DC Power Supply

    ML-ABD1

    All Light 1 Barn Door

    ML-RC1

    All Light 1 Rain Cover

    ML-PB48/ ML-BA24

    48V DC Power Supply

    ML-AT2 / ML-QR1

    Quick Realese Clamp Adapter /

    Rail Mount Adapter

  • ML-AL2  ALL LIGHT 2

    Optional Part

    Optional Part

    Optional Part

    ML-ABD2

    All Light 2 Barn Door

    ML-RC2

    All Light 2 Rain Cover

    ML-PB48/ ML-BA24

    48V DC Power Supply

    ML-AL2

    LED Light Module

    ML-APC1

    PowerCon AC Power Cable

    ML-APC2

    DC Power Cable

    ML-APS2

    48V DC Power Supply

    ML-AT2 / ML-QR1

    Quick Realese Clamp Adapter /

    Rail Mount Adapter

  • ML-AL4  ALL LIGHT 4

    Optional Part

    Optional Part

    Optional Part

    ML-ABD4

    All Light 4 Barn Door

    ML-RC4

    All Light 4 Rain Cover

    ML-PB48/ ML-BA24

    48V DC Power Supply

    ML-AL4

    LED Light Module

    ML-APC1

    PowerCon AC Power Cable

    ML-APC2

    DC Power Cable

    ML-APS4

    AC Power Supply

    ML-AT2 / ML-QR1

    Quick Realese Clamp Adapter /

    Rail Mount Adapter
