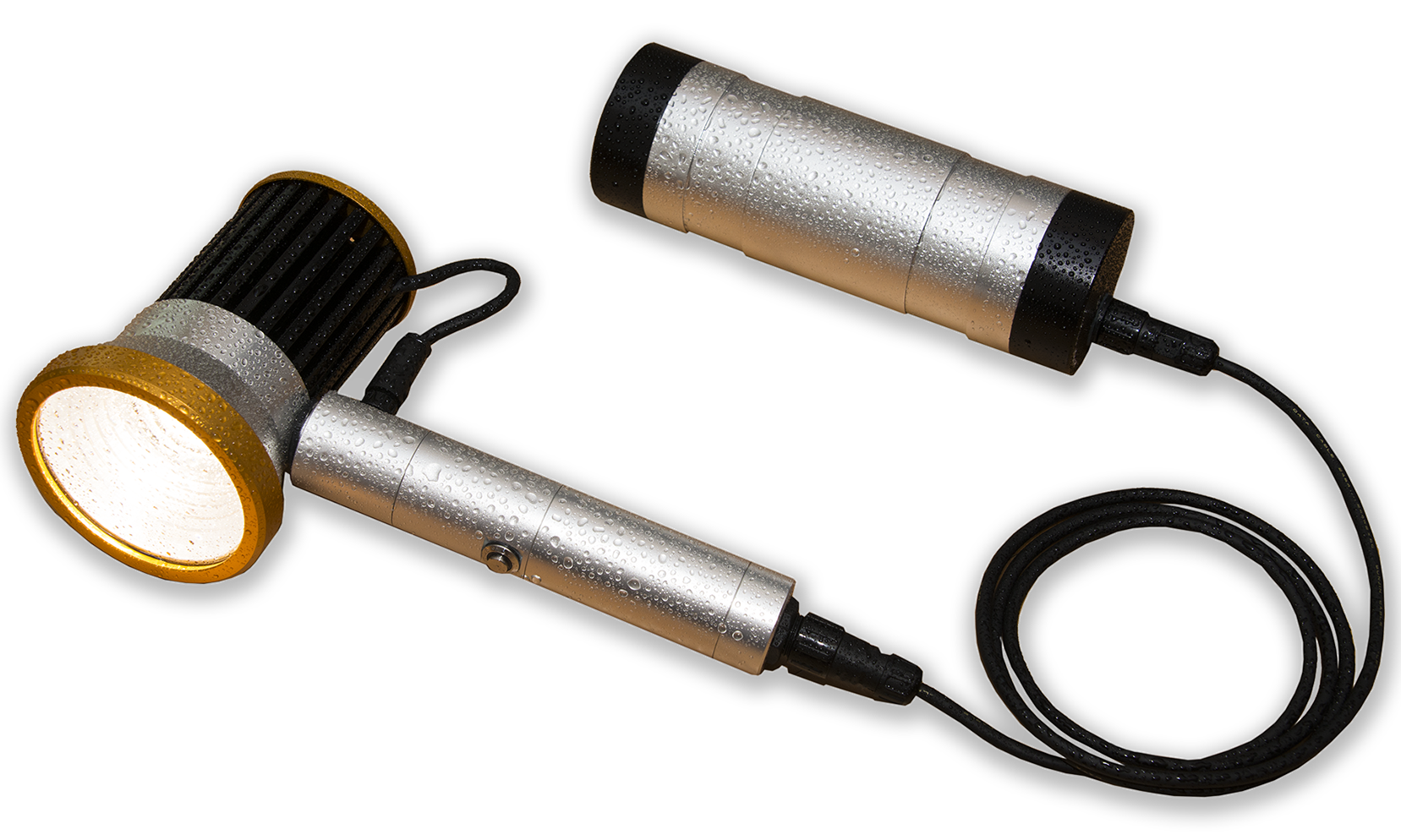

All round Play LED Sun Gun Light

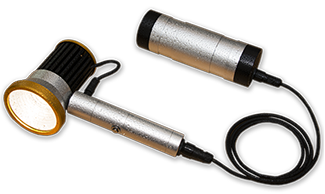

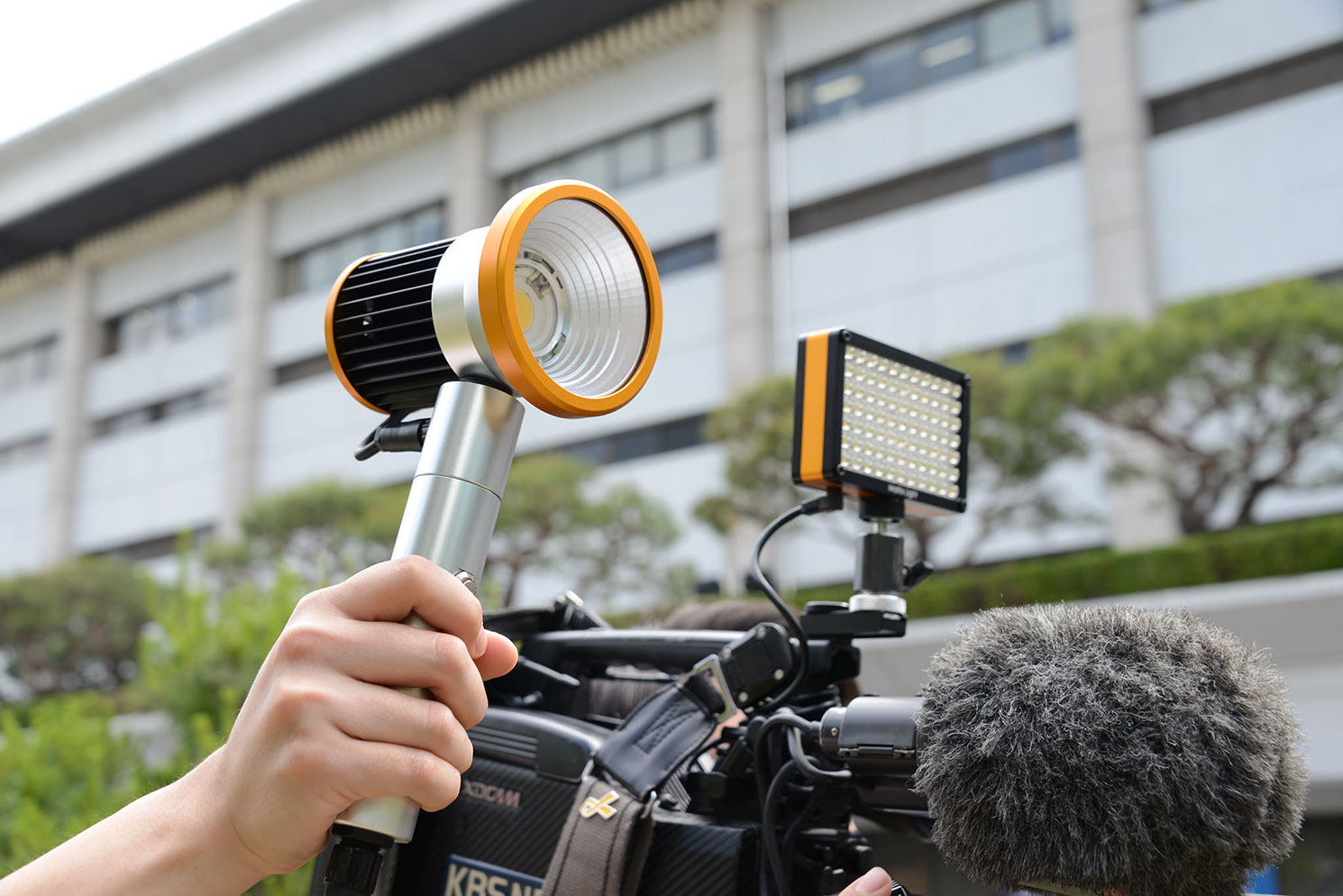

Matrix Light’s ML-SG4K LED Sun Gun Light is a Portable Spot Light that will perfectly support any news gathering situation. With a maximum brightness of 4,750lm, reliable waterproofing, and excellent portability, the ML-SG4K LED Sun Gun Light is the superior choice. The ML-SG4K LED Sun Gun Light is an all-round light system, meaning it’s not only for news gathering but also for any shooting situation. As such it possesses none of the halogen lamp’s weaknesses such as low luminance efficiency and short battery life. The ML-BA40W Lithium-ion Battery provided with the SG4K LED Sun Gun Light, is the waterproof and high-efficient power source that allows the ML-SG4K LED Sun Gun Light to run for more than two hours in any weather conditions.

4,750lm

Maximum Brightness(Unit : Lumen)

4,000K

Minimum Color Temp.(Unit : Kelvin)

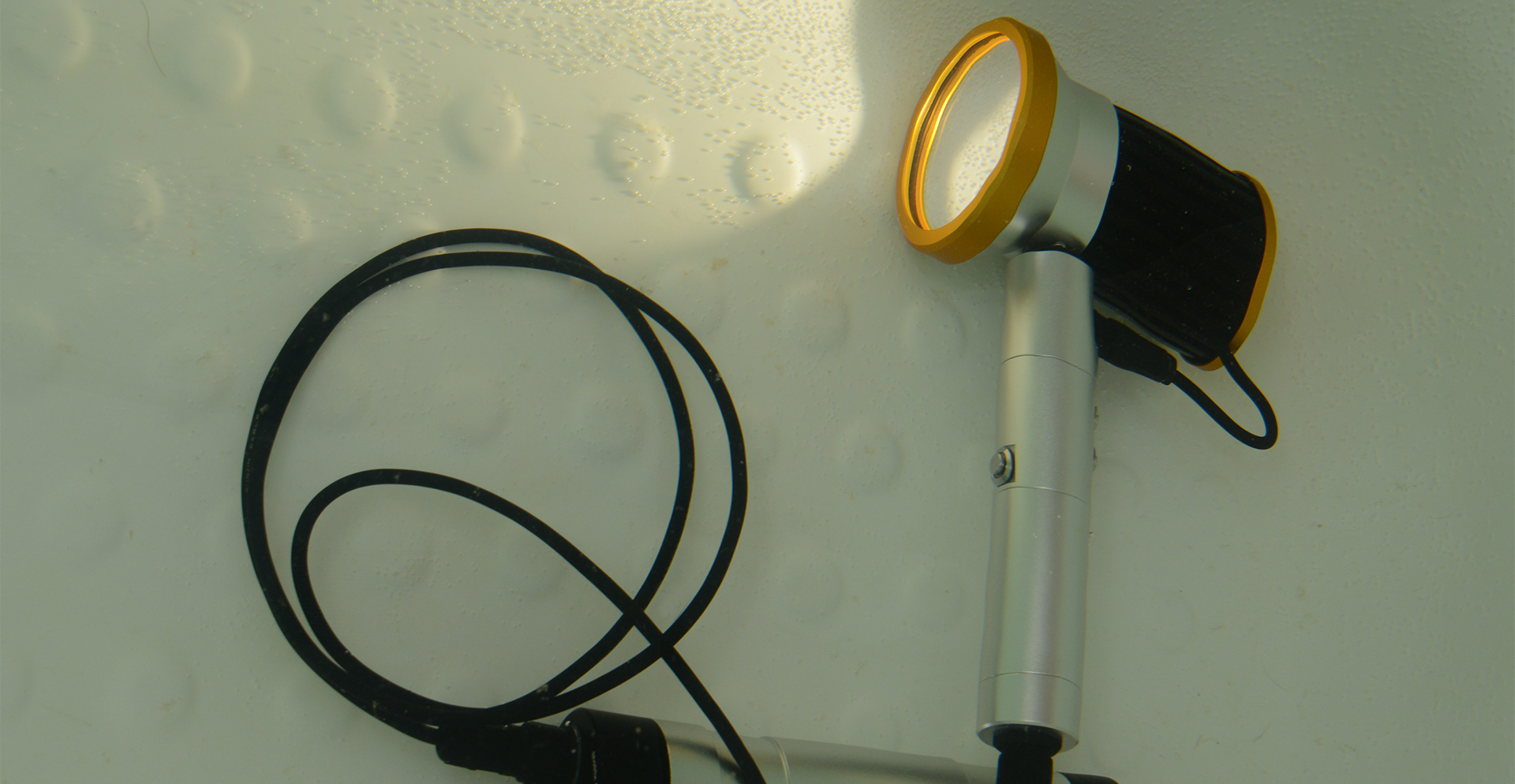

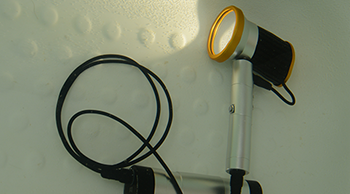

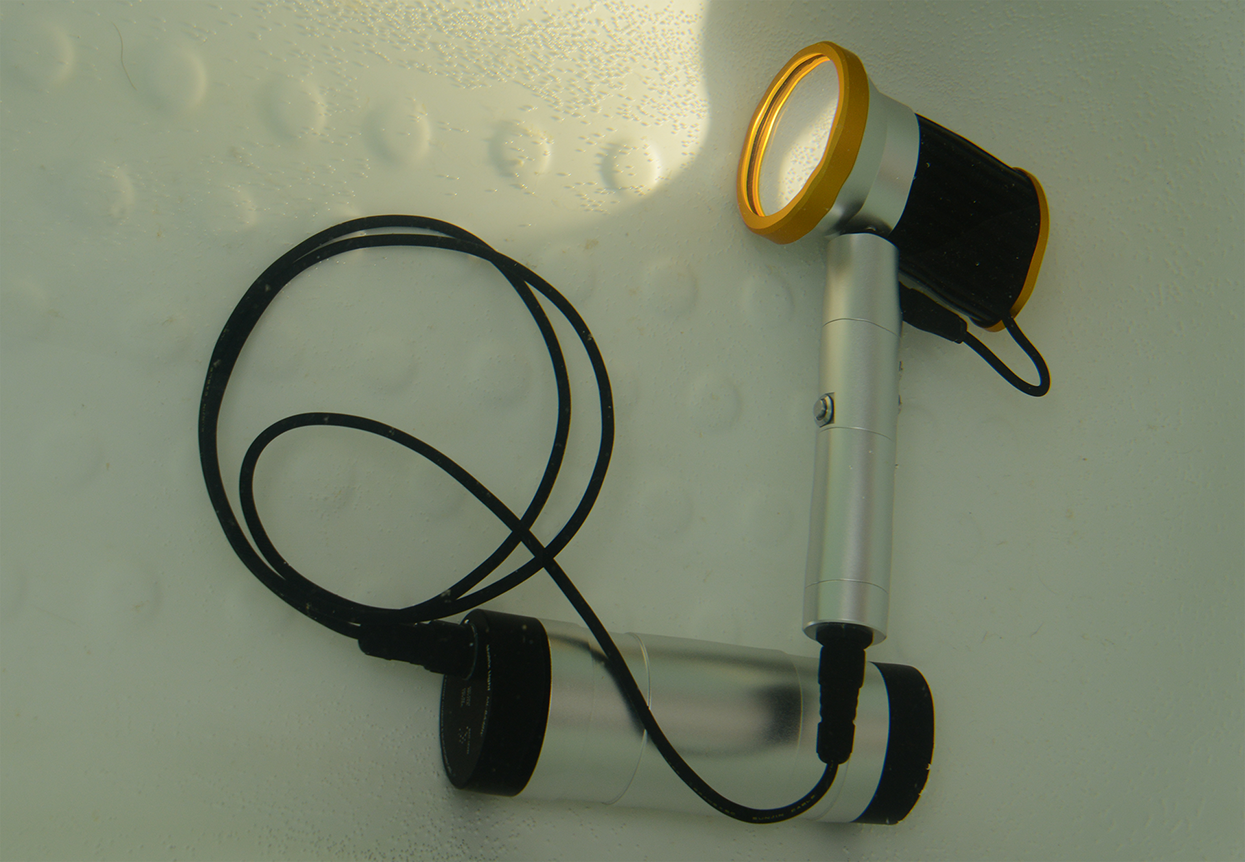

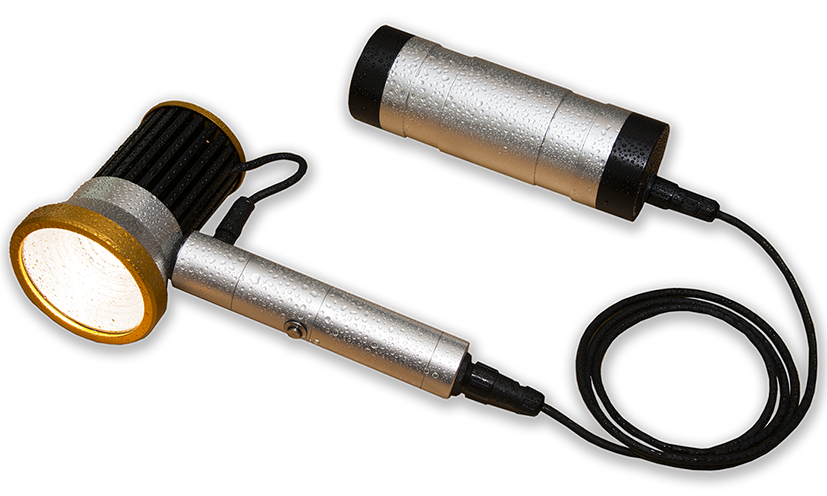

IP64

Ingress Protection Dgree

MLSG4K

4,750

2,500

Cine-60

100W Light Bulb

1,000

Maximum

Brightness

(Unit : Lumen)

Solid Body & Precise Micom Control

ML-SG4K LED Light’s aluminum body is lightweight yet durable, and acts as an excellent heat sink, maximizing durability and lifetime. Also, the sophisticated micom controller promises the ML-SG4K LED Light to be the most advanced LED light providing users with precise light control and the best quality.

Electronic Dimming Control and Convenient Design

The Dimming controller located on the ML-SG4K LED Sun Gun Light’s handle allows users to achieve the perfect brightness in 10% increments to 4,750lm. Also the handle is detachable from the light body, maximizing its convenience.

10 STEPS

Dimming Control

Specifications

▪ Type :  Current regulated power LED light



 ▪  Light projection range : 0.6 ~ 10M (Effective light projection range)

                                                       (depends on shutter speed, aperture levels, and gain control)



▪  Light projection angle Horizontal: 60 ˚ vertical: 60 ˚



▪  Color Temperature: 4,000K



▪  Brightness: 10% ~ 100% (Digital variable)



▪  Luminance Flux:  4,750lm MAX



▪  Illuminance in 1M distance:  4,000lux MAX



▪  Power supply: 48V DC



▪  Current consumption: 1A/48W(Max)



▪  Luminance efficiency: 96lm/W



▪  Battery: 48V DC / 2,600mA (Li‐ion)



▪  Battery running time: 2hrs. (With Maximum Brightness)

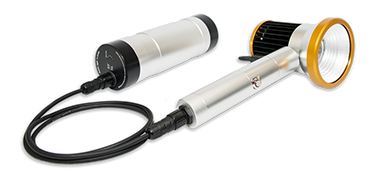

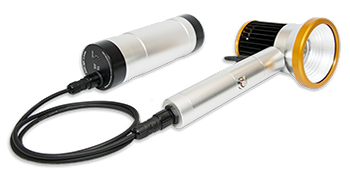

  • ML-SG4K LED Sun Gun KIT

    ML-SG4K

    LED Light Module

    ML-PC10

    Power Cable

    ML-DF4

    Diffuser

    ML-BA48W

    Li-ion Battery 48V / 125W

    ML-CHG5

    Battery Charger for ML-BA48W

  • ML-SG4K Optional Accessory

    ML-BA48W Strap

    Strap for ML-BA48W

    ML-LS1

    Light Stand

    ML-PS2

    Power Supply for ML-SG4K

    Input: 220V / 60Hz

    Output: 42V DC

    ML-PC11

    Extension Cable for ML-SG4K
