ML-MPS1

Multi Power Supply

More functional and brighter than ever before

Matrix Light has been providing broadcasting stations and professional broadcasters with the best quality products since the release of the ML-80 LED light. Long term customers such as KBS, MBC, SBS and NHK, and Fuji TV have demonstrated the reliability and superiority of the Matrix Light products. Accepting various inputs from professional broadcasters, the new Matrix Light ML-9 will be the ultimate light in the field.

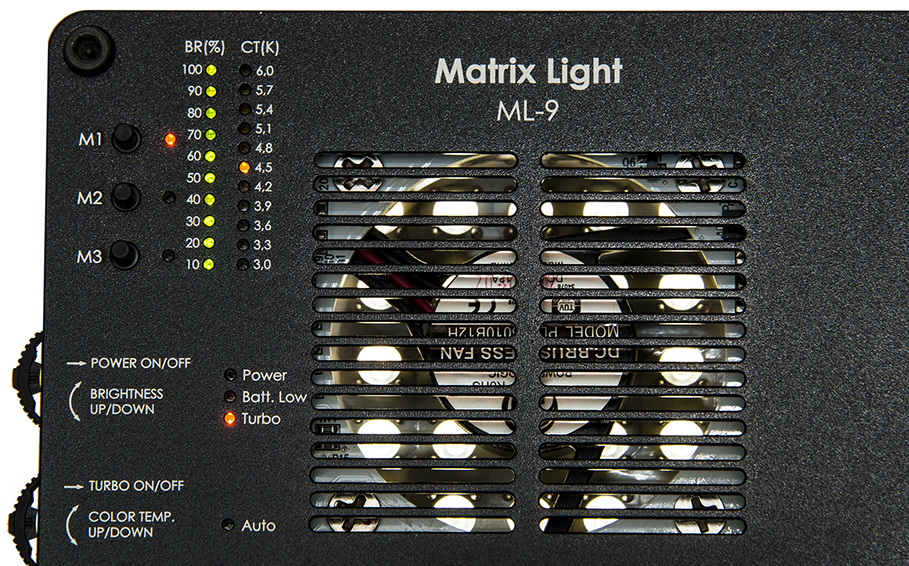

Memory Buttons

Brightness Indicator

Color Temp. Indicator

Memory Buttons

Dual Indicators

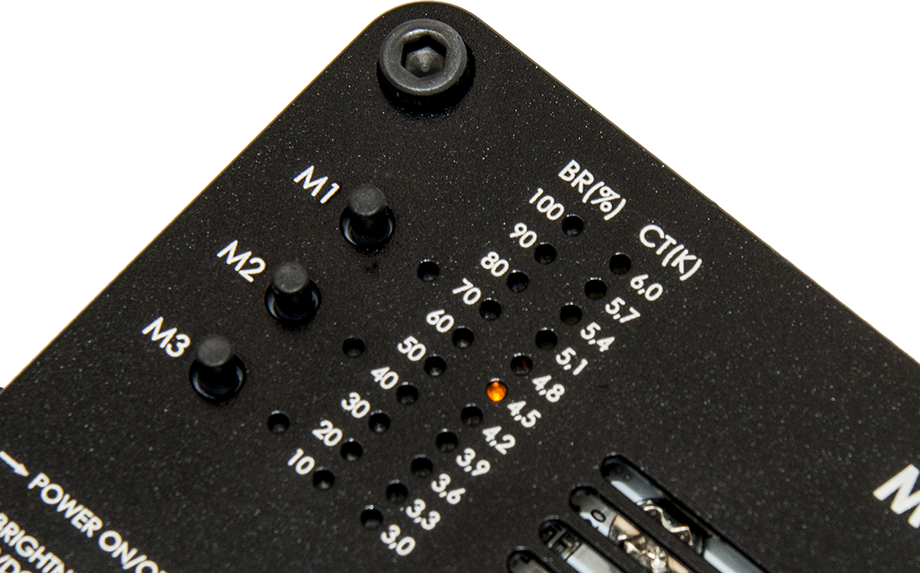

ML-9 LED Light includes three built-in memory buttons that could restore most frequently used brightness and color temperature. This convenient feature allows the user to get the light ready efficiently.

ML-9 LED Light includes dual indicators that could display current brightness and color temperature. This convenient feature allows the user to get more detailed light control.

3

Memory Buttons

2

Indicators

Precision light control system

Precision dimming and coloring controllers on the ML-9 allows the user to achieve the ideal brightness and color temperature for every occasion.



▣ Brightness range: 150lm to 2,200lm in 240lm increments

▣ Color temperature range: 3,200K to 5,800K in 240K increments



The Turbo mode supports up to 2,200lm of brightness, equivalent to a 220W light bulb, for situations requiring more bright lighting.

2,200lm

Maximum Brightness

(Unit : Lumen)

3,200K

Minimum Color Temp.

(Unit : Kelvin)

5,800K

Maximum Color Temp.

(Unit : Kelvin)

ML-9

2,200

Maximum

Brightness

(Unit : Lumen)

ML-7

ML-80

1,950

1,250

100W Light Bulb

1,000

Specifications

▪ Type :  Current regulated power LED light



▪ Light projection range :  0.6 ~ 6M (Effective light projection range)

            (depends on shutter speed, aperture levels, and gain control)



▪ Light projection angle Horizontal :  110 ˚ vertical: 90 ˚



▪ Color Temperature :  3200K~5800K (240K/1Step)



▪ Brightness :  10% ~ 100% (230lm/1Step)



▪ Luminance Flux :  1,100lm MAX (in Normal Mode)

                                  2,200lm MAX (in Turbo Mode)



▪ Illuminance in 1M distance :  1,100lux MAX (in Normal Mode)

                                                    2,200lux MAX (in Turbo Mode)



▪ Power supply :  12V DC



▪ Current consumption :  Normal mode: 1.5A/18W(Max)

                                           Turbo mode :  3A/36W(Max)



▪ Luminance efficiency :  66lm/W



▪ Battery :  12V DC / 5,200mA (Li‐ion)



▪ Battery running time : 2h 30min (Maximum Brightness in Normal Mode)

                                         1h 15min (Maximum Brightness in Turbo Mode)
